Alright, listen up—this isn't your grandpa’s U-bolt.

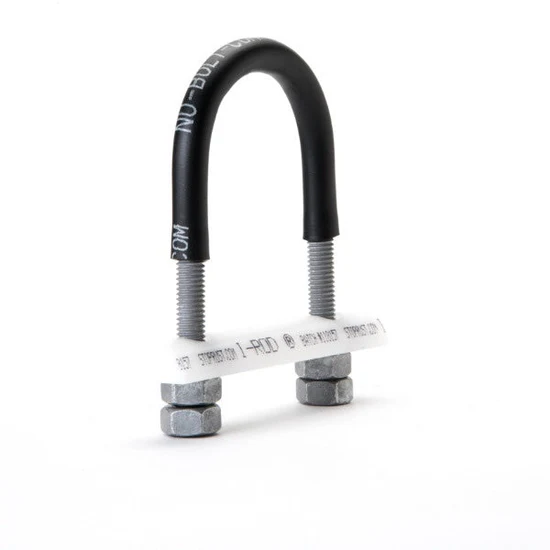

The Galvanized Nu-Bolt is built for corrosion combat, featuring a tough-as-nails hot-dip galvanized finish, a poly-coated saddle, and hot-dip galvanized nuts ready to hold the line under pressure. Pipes, conduit, structural steel—whatever you’re strapping down, this bad boy doesn’t flinch.
Rust? Not on my watch. Slippage? Forget it. This is the bolt you bring when failure ain't an option.
Battle-tested. Corrosion-resistant. Unshakable.
“Clamp it down and carry on.”
– Sergeant Troop Approved 🛠️
ADDITIONAL INFORMATION:
Nu-Bolt assembly with I-Rod pipe support material and 4 nuts, shipped unassembled
- 1 x HDG U-Bolt ASTM A36 stock with Polyshrink
- 1 x Half-round I-Rod support: cut and drilled
- 4 x HDG heavy hex nuts
Nu-Bolt Quick Order

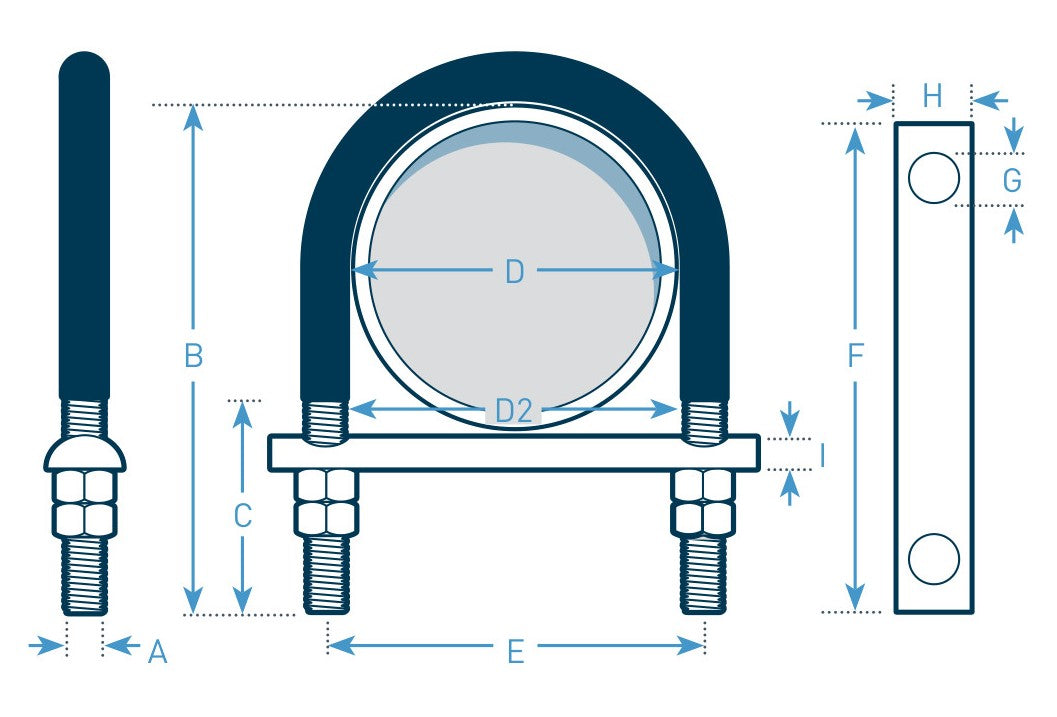

| A | B | C | D | D2 | E | F | G | H | I | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Nominal Pipe Size | Bolt Diameter | U-Bolt Height | Thread Length | Inside Gap | Inside Gap w/o Polyshrink | Leg Center | I-Rod Length | I-Rod Hole Diameter | I-Rod Width | I-Rod Height | Quantity | Price |
| NUB0045 | 1/2" | 1/4" | 3 1/4" | 2 3/8" | 13/16" | 15/16" | 1 3/16" | 2 1/2" | 3/8" | 3/4" | 5/16" |
|
$9.49
|
| NUB0046 | 1/2" | 3/8" | 3 1/4" | 2 3/8" | 1" | 1 1/8" | 1 3/8" | 2 11/16" | 3/8" | 3/4" | 5/16" |
|
$11.47
|
| NUB0071 | 3/4" | 1/4" | 3 5/16" | 2 3/8" | 1" | 1 1/8" | 1 3/8" | 3" | 3/8" | 3/4" | 5/16" |
|
$9.49
|
| NUB0074 | 3/4" | 3/8" | 3 5/16" | 2 3/8" | 1" | 1 1/8" | 1 1/2" | 3" | 1/2" | 1" | 7/16" |
|
$10.86
|
| NUB0047 | 1" | 1/4" | 3 7/16" | 2 3/8" | 1 1/4" | 1 3/8" | 1 5/8" | 3" | 3/8" | 3/4" | 5/16" |
|
$9.67
|
| NUB0001 | 1" | 3/8" | 3 7/16" | 2 3/8" | 1 1/4" | 1 3/8" | 1 3/4" | 3" | 1/2" | 1" | 7/16" |
|
$10.95
|
| NUB0013 | 1 1/4" | 3/8" | 3 3/4" | 2 1/2" | 1 9/16" | 1 11/16" | 2 1/16" | 3 1/2" | 1/2" | 1" | 7/16" |
|
$11.84
|
| NUB0052 | 1 1/2" | 3/8" | 4" | 2 1/2" | 1 7/8" | 2" | 2 3/8" | 4" | 1/2" | 1" | 7/16" |
|
$11.84
|
| NUB0009 | 2" | 3/8" | 4 1/2" | 2 1/2" | 2 5/16" | 2 7/16" | 2 13/16" | 4 1/2" | 1/2" | 1" | 7/16" |
|
$12.22
|
| NUB0017 | 2 1/2" | 1/2" | 5 1/4" | 3" | 2 13/16" | 2 15/16" | 3 7/16" | 5" | 5/8" | 1" | 7/16" |
|
$15.99
|
| NUB0010 | 2 1/2" | 3/8" | 5 1/4" | 3" | 2 13/16" | 2 15/16" | 3 5/16" | 4 1/2" | 1/2" | 1" | 7/16" |
|
$15.99
|
| NUB0057 | 3" | 1/2" | 5 13/16" | 3" | 3 7/16" | 3 9/16" | 4 1/16" | 6" | 5/8" | 1" | 7/16" |
|
$15.72
|
| NUB0060 | 4" | 1/2" | 6 13/16" | 3" | 4 7/16" | 4 9/16" | 5 1/16" | 7" | 5/8" | 1" | 7/16" |
|
$17.20
|
| NUB0063 | 5" | 1/2" | 7 13/16" | 3" | 5 1/2" | 5 5/8" | 6 1/8" | 8" | 5/8" | 1" | 7/16" |
|
$24.60
|
| NUB0064 | 6" | 5/8" | 9 1/2" | 3 3/4" | 6 5/8" | 6 3/4" | 7 3/8" | 9" | 11/16" | 1" | 7/16" |
|
$27.24
|
| NUB0077 | 8" | 5/8" | 11 1/2" | 3 3/4" | 8 5/8" | 8 3/4" | 9 3/8" | 11" | 11/16" | 1" | 7/16" |
|
$30.74
|
| NUB0003 | 10" | 3/4" | 13 13/16" | 4" | 10 3/4" | 10 7/8" | 11 5/8" | 13 1/2" | 7/8" | 1 1/2" | 11/16" |
|
$47.20
|
| NUB0085 | 12" | 7/8" | 16 1/16" | 4 1/8" | 12 3/4" | 12 7/8" | 13 3/4" | 16" | 1" | 1 1/2" | 11/16" |
|
$60.25
|
| NUB0091 | 14" | 7/8" | 17 5/16" | 4 1/8" | 14" | 14 1/8" | 15" | 17" | 1" | 1 1/2" | 11/16" |
|
$65.83
|
| NUB0005 | 16" | 7/8" | 19 5/16" | 4 1/8" | 16" | 16 1/8" | 17" | 19" | 1" | 1 1/2" | 11/16" |
|
$82.85
|
| NUB0098 | 18" | 1" | 21 11/16" | 4 3/4" | 18" | 18 1/8" | 19 1/8" | 21 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$96.85
|
| NUB0101 | 20" | 1" | 23 11/16" | 4 3/4" | 20" | 20 1/8" | 21 1/8" | 23 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$115.57
|
| NUB0011 | 24" | 1" | 27 11/16" | 4 3/4" | 24" | 24 1/8" | 25 1/8" | 27 1/2" | 1 1/8" | 1 1/2" | 11/16 |
|
$153.28
|
| NUB0106 | 28" | 1" | 31 11/16" | 4 3/4" | 28" | 28 1/8" | 29 1/8" | 31 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$217.64
|
| NUB0107 | 30" | 1" | 33 11/16" | 4 3/4" | 30" | 30 1/8" | 31 1/8" | 33 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$174.58
|
| NUB0109 | 36" | 1" | 39 11/16" | 4 3/4" | 36" | 36 1/8" | 37 1/8" | 39 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$204.66
|
